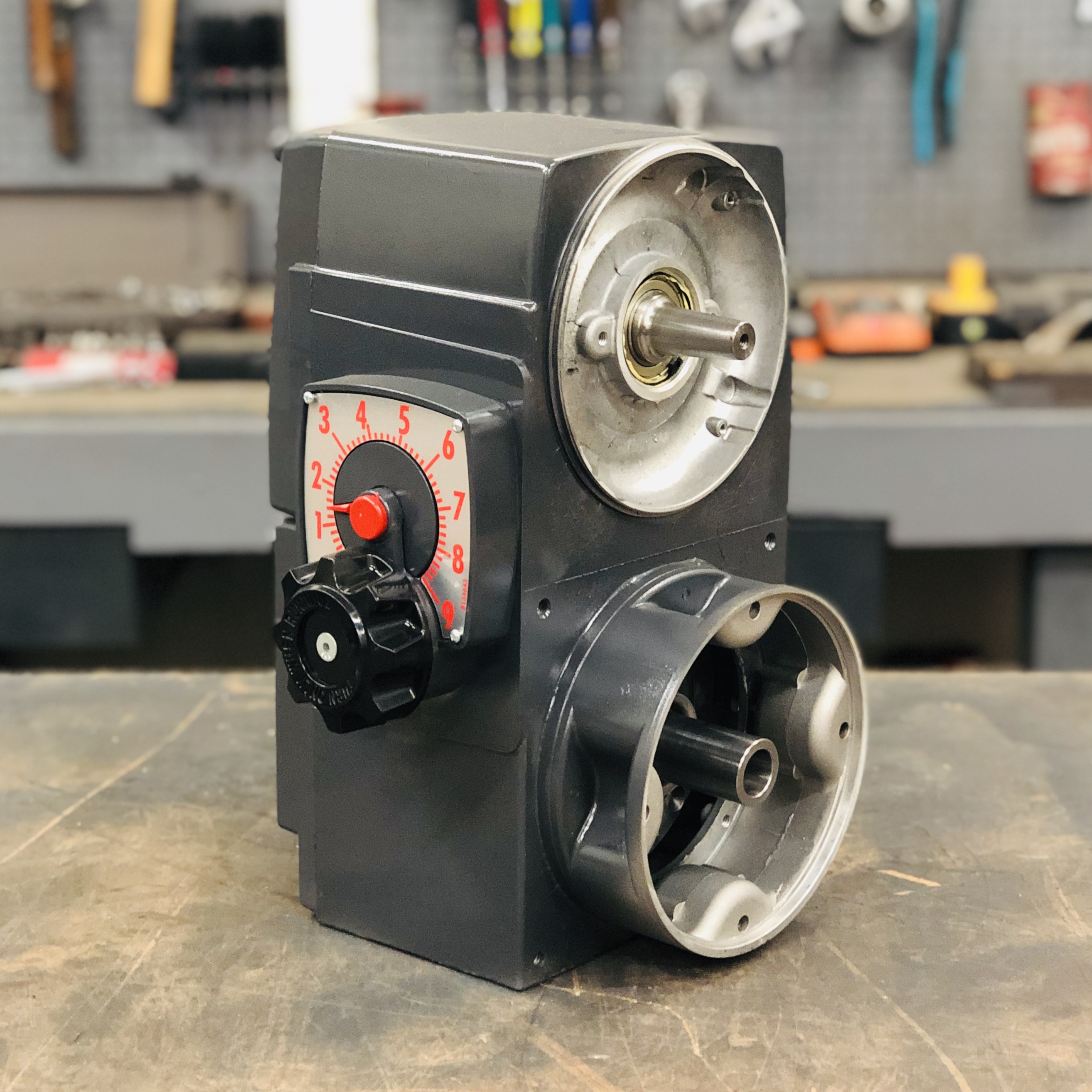

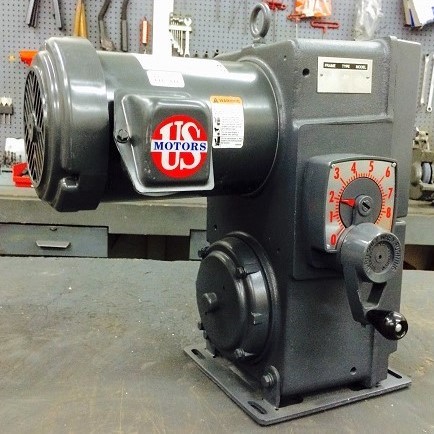

Industrial Parts is the sole manufacturer of Varidrive Beltcases and Parts. We sell them individually or as complete assemblies with an accompanying motor and gearbox as requested. We also offer repair quotes for most frame sizes.



Exploded View Diagrams

Below are the four most common Varidrive beltcase PDF diagrams. Feel free to use them to assist you in determining the proper parts and positioning for your application.

6 Frame Exploded View Diagram

10 Frame Exploded View Diagram

15 Frame Exploded View Diagram

25 Frame Exploded View Diagram



ONE FRAME, 1/2HP SINGLE PHASE WITH RIGHT ANGLE GEARBOXES
ONE FRAME, 1/2HP THREE PHASE WITH RIGHT ANGLE GEARBOXES

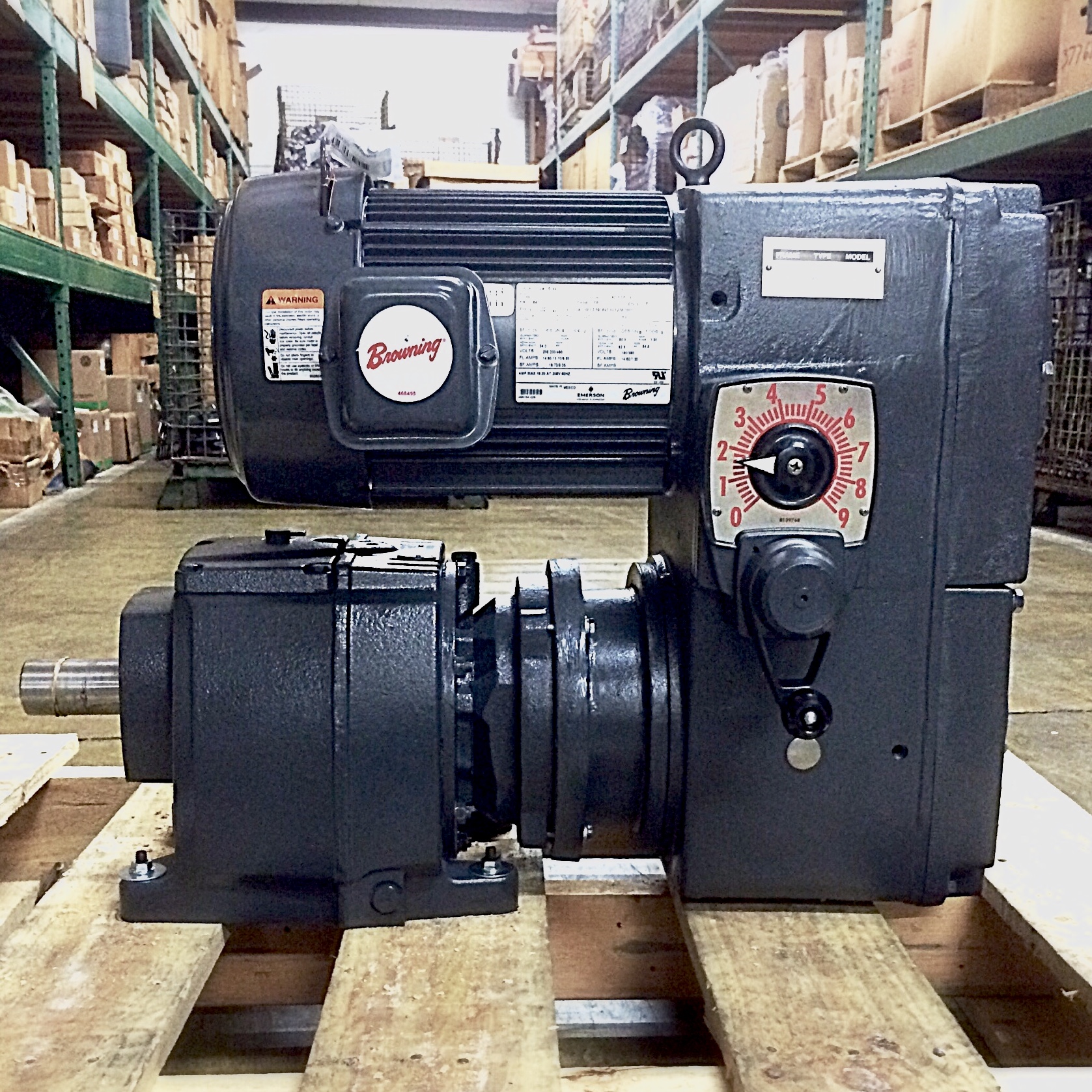

6 FRAME MODULAR – REQUIRES MOTOR AND GEARBOX
10 FRAME MODULAR – REQUIRES MOTOR AND GEARBOX
15 FRAME MODULAR – REQUIRES MOTOR AND GEARBOX
25 FRAME MODULAR – REQUIRES MOTOR AND GEARBOX
GEARLESS DESIGNS – MODULAR – ONLY REQUIRES A MOTOR
6 FRAME GEARLESS DESIGNS – MODULAR, WITH MOTORS, 1 PHASE AND 3 PHASE
